Active Directory, Group Policy

Configure Photo Screensaver via Active Directory Group Policy

1) On reference computer, configure the default Photo screensaver including location. This is done because this value is stored as an encrypted value within the Registry. In the article C:\Windows\Branding\Dundermifflin is used.

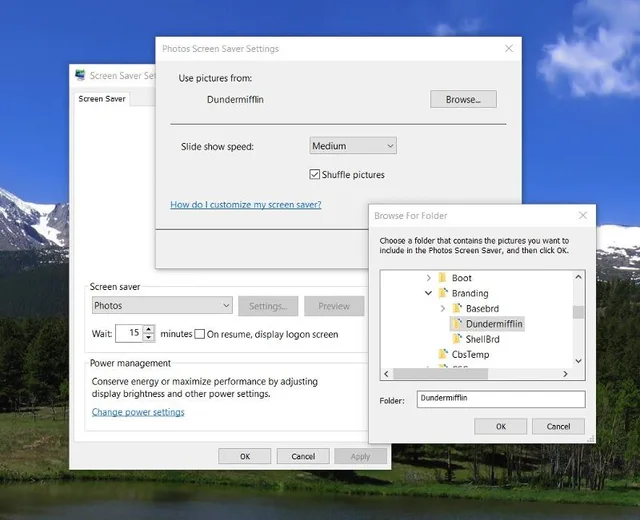

Windows photo screensaver settings dialog

2) Open Regedit and browse to HKCU\SOFTWARE\Microsoft\Windows Photo Viewer\Slideshow\Screensaver and record value for EncryptedPIDL

Registry Editor showing EncryptedPIDL value

3) Store images that will be used for the screensaver in a network location The Domain DFS is perfect for small files like these

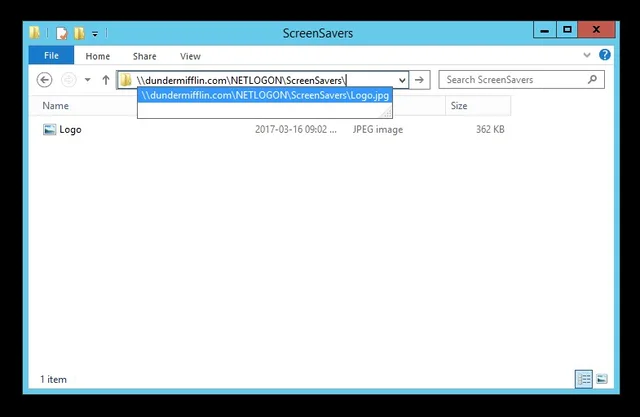

Screensaver images stored in network DFS share

4) Create a new policy and add the EncrypedPIDL registry value to User Configuration > Preferences > Windows Settings > Registry

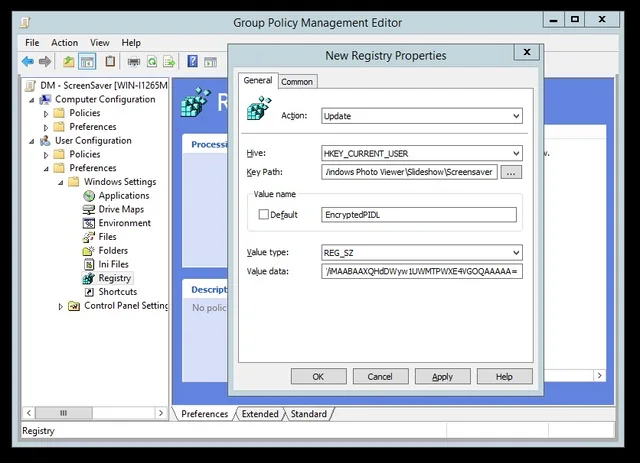

GPO registry preference for EncryptedPIDL value

5) From the Common tab enable the Remove the item when it is no longer applied option

6) Add the images to User Configuration > Preferences > Windows Settings > Files. The Source File(s) should be the network location used in Step 3.

TIP: Press F3 to open Variable Reference List

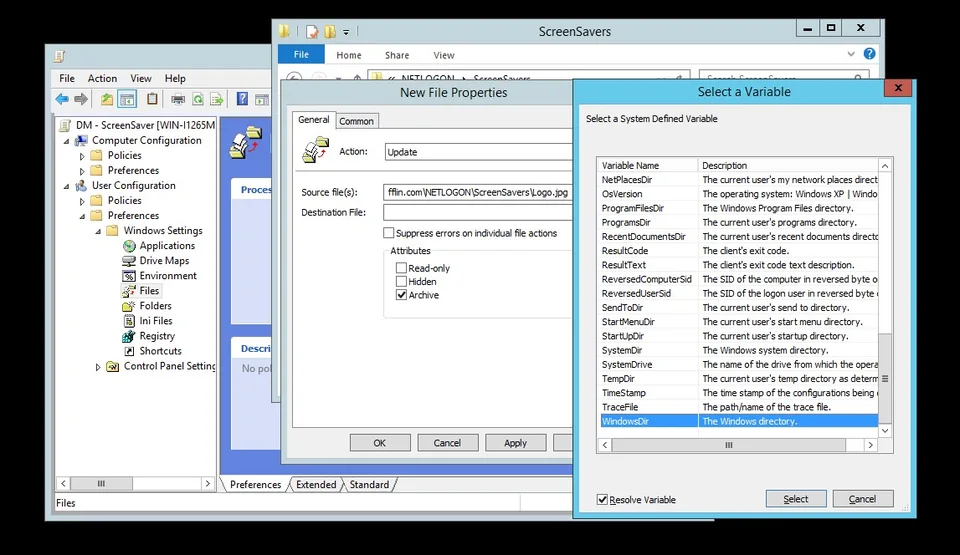

GPO file preference with source network path

7) For the Destination File, specify filename with location from Step 1

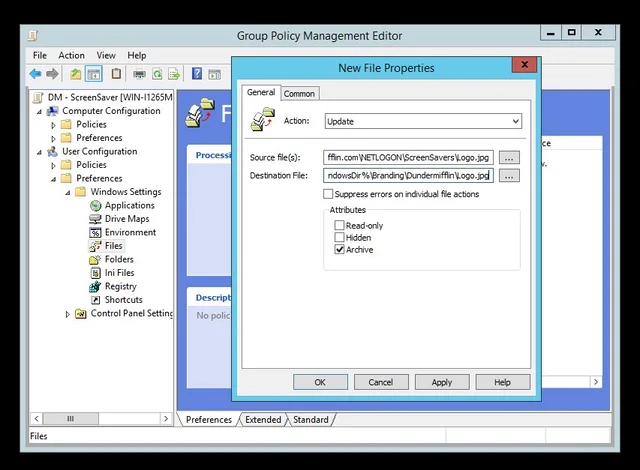

GPO file preference with destination path

8) From the Common tab enable the Remove the item when it is no longer applied option

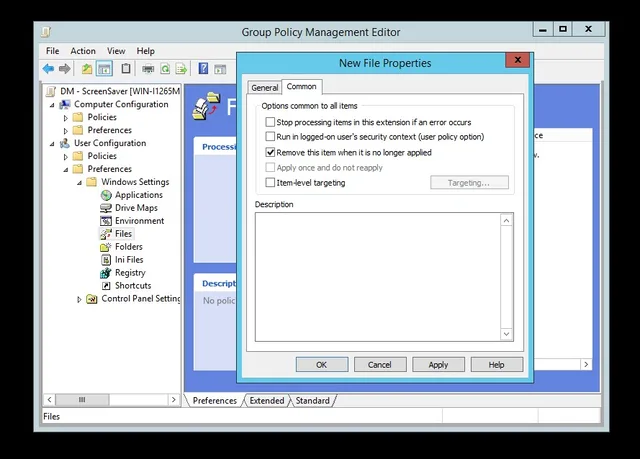

File preference Common tab settings

9) Configure the rest of the policy as per norm for screensaver.

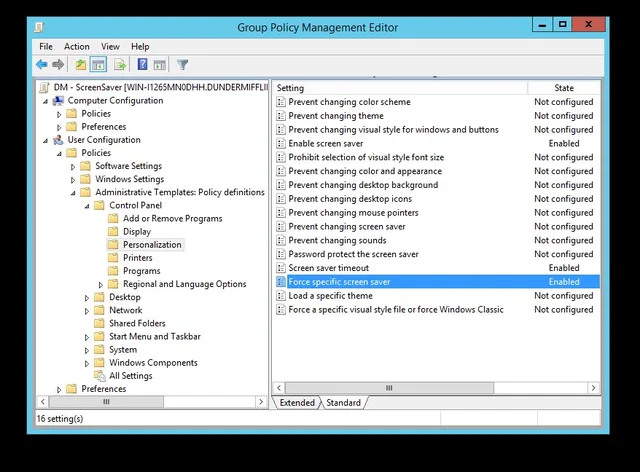

Screensaver GPO policy settings

10) For the Force specific screen saver specify %Systemroot%\System32\PhotoScreensaver.scr

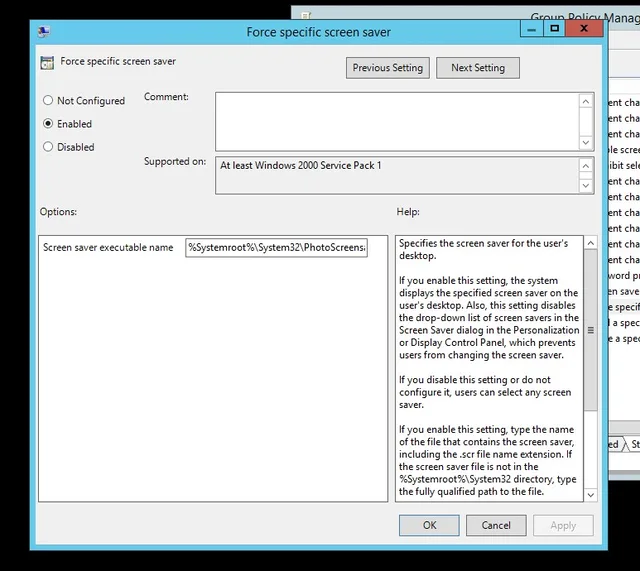

Force specific screensaver path setting
